Buried Danger: Underground Cloth Wiring Solved by Los Angeles Electricians

When a kitchen circuit breaker keeps tripping, most homeowners assume it is a faulty appliance, an overloaded outlet, or a bad refrigerator. But sometimes, the real hazard is buried completely out of sight.

Recently, The Electric Connection was called to a multi-unit property in Los Angeles to troubleshoot a stubborn 20-amp kitchen circuit breaker that refused to stay reset. What we uncovered under the house was a severe safety hazard that required immediate intervention.

---

The Investigation: Beyond the Kitchen Walls

Our troubleshooting process began in the kitchen. We systematically checked the refrigerator outlet and surrounding countertop receptacles. However, diagnostic tests showed the circuit was dead-shorting somewhere deeper in the line.

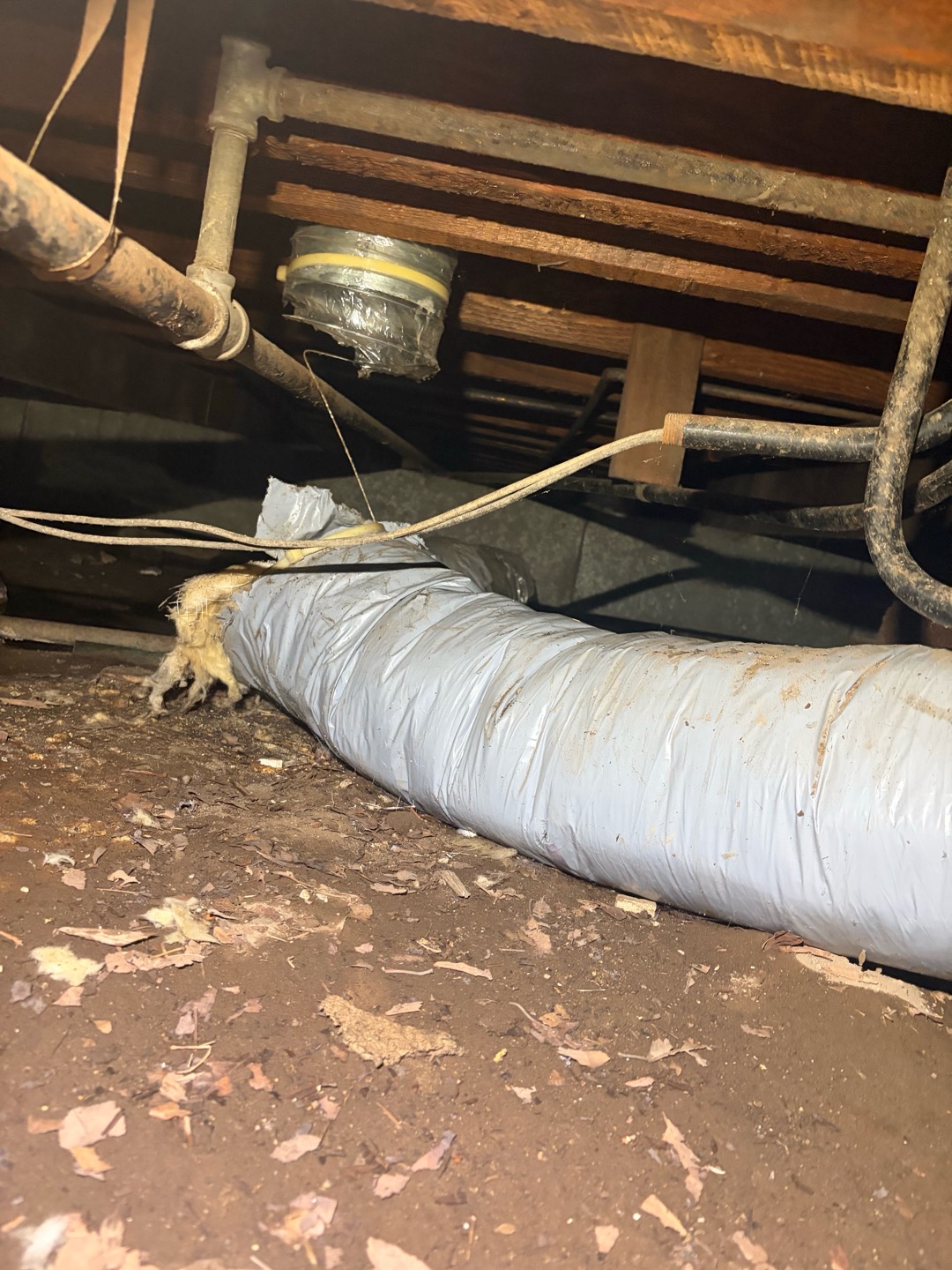

To locate the fault, our electricians ventured into the crawlspace underneath the home. That is where we found the culprit: a live, decaying vintage cloth wire resting directly in the dirt ground.

The Fix: Eliminating the Underground Hazard

We immediately explained the severe safety risks to the customer, who promptly approved the repair. Our team got to work securing the area and correcting the hazard:

1. Isolating and Cutting: We safely disconnected the compromised, live underground wiring.
2. Junction Box Installation: We mounted a code-compliant, weather-resistant junction box (J-box) off the ground to keep all connections dry, clean, and elevated.
3. Securing the Wires: We made safe, permanent splices within the J-box, successfully isolating the circuit from the damp crawlspace floor.
4. Testing the System: With the hazardous short removed, we returned to the electrical panel. The 20-amp breaker was reset, and the kitchen outlets powered up perfectly with zero tripping.

Going the Extra Mile: Safety Inspections & Future Upgrades

While on-site, the homeowner asked us to inspect a few other critical areas of the property (which features two separate units each with its own utility meter).

1. Laundry & Refrigerator Circuit Verification

Because heavy appliances pull significant power, the customer wanted to verify that the laundry room (washer and dryer) and the kitchen refrigerator were wired correctly. We thoroughly mapped the circuits and confirmed that yes, the refrigerator and the laundry room are on completely separate, dedicated circuits—exactly as modern safety codes require.

2. Main Electrical Service Upgrades

Since this property has two separate meters for its two units, the main electrical service is quite dated. We provided the client with a comprehensive estimate to **completely redo the main service** for both units, ensuring modern, reliable utility connections.

3. Phasing Out Vintage Cloth Wiring

Given the underground cloth wire scare, the homeowner wanted to tackle the rest of the old wiring. We provided a detailed quote to replace the remaining cloth circuits throughout the living room and several other outlets in one of the units, paving the way for a completely modernized, worry-free electrical system.
